Create a Camera Obscured Alert with Email Notifications

By configuring this Raven rule in your Geotab account, you can begin receiving alerts via email if a driver’s camera is obscured.

1. From the Geotab web app, click "Groups & Rules", then “Rules” from the left side menu.

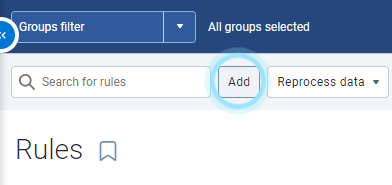

2. At the top of the page, click “Add”.

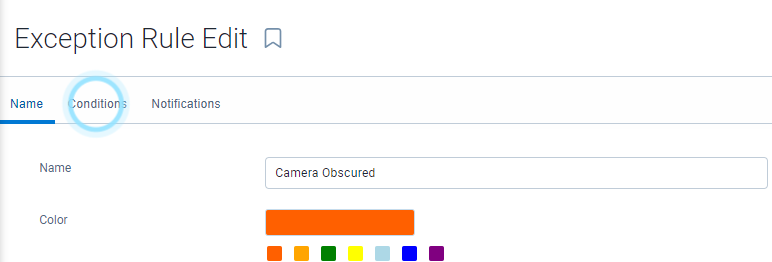

3. Enter “Camera Obscured” in the “Name” field, then click the “Conditions” tab.

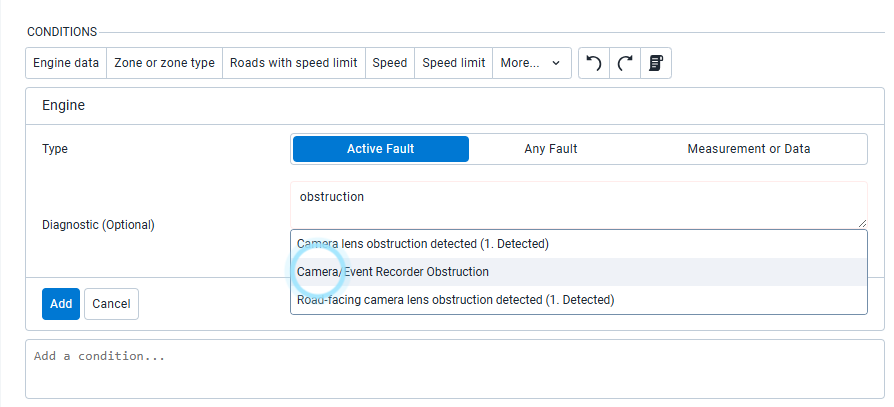

4. Click “Engine data”, select "Active Fault", then click “Display All Diagnostics”. Enter “obstruction” in the above field, select “Camera/Event Recorder Obstruction", then click “Add”.

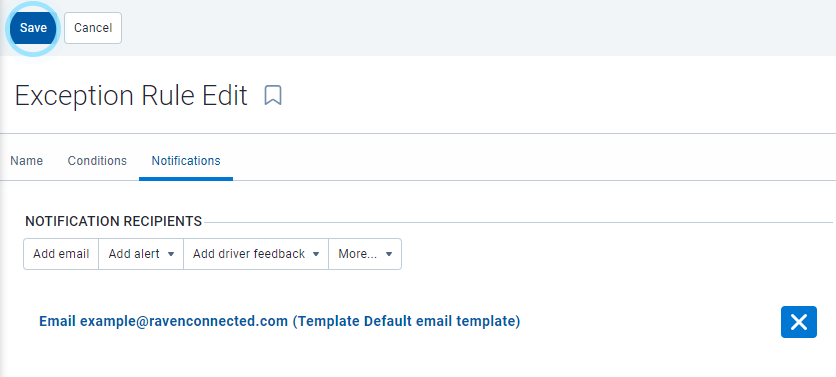

5. Click the “Notifications” tab, then click “Add email”. Enter the desired email address, click “Add”, then click “Save” at the top of the page.
